Counting Reticles

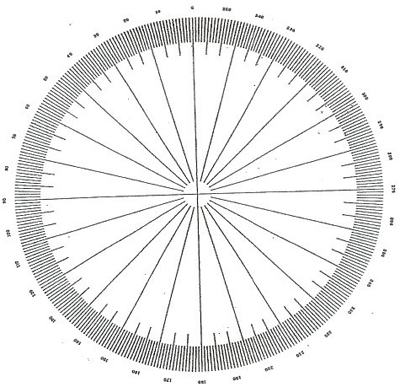

KR-810 Counting Reticles

s/

KR-810 Comparator

Lines: Chrome deposition Adobe PDFDownload Adobe PDF
Chamfer: 0.010"-0.020"
Flatness: 2 waves or better
Centering: Within 0.005"
Glass Thickness: 1.5mm±0.2mm
Surface Quality: 20/10
Parallelism: 2 min.
