Concentric Circles

Call 800 252 2401If you have any question please
Call Toll Free: 800.252.2401
In NH: 603.424.2401

sales at reticles.comsales@reticles.com
Glass diameter must be specified when ordering

Concentric Circles with Crossline

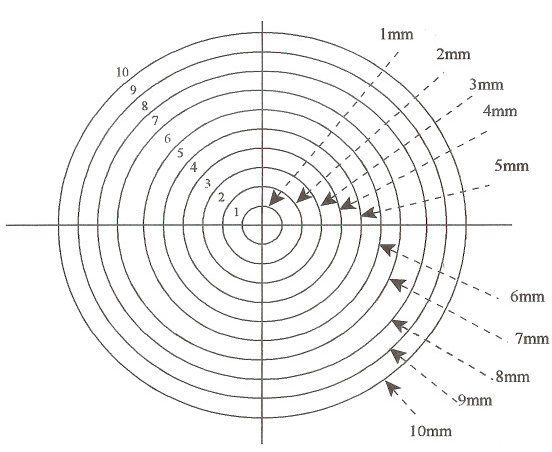

KR-501 10 Concentric Circles with Crossline

Diameters equal 1mm thru 10mm with Crossline. Numbered 1 thru 10

KR-502 10 Concentric Circles. with Crosslines

Diameters equal .5mm thru 5mm with Crossline. Numbered 1 thru 10

Lines:
Chamfer:
Flatness:
Centering:
Glass Thickness:
Surface Quality:
Parallelism:		 Chrome Deposition
0.010"-0.020"
2 waves or better
Within 0.005"
1.5mm#0.1mm
20/10
2 min.



Adobe PDFDownload KR-501 pdf

Adobe PDFDownload KR-502 pdf
